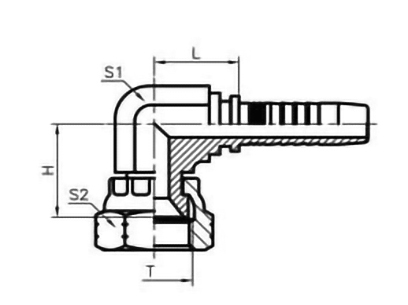

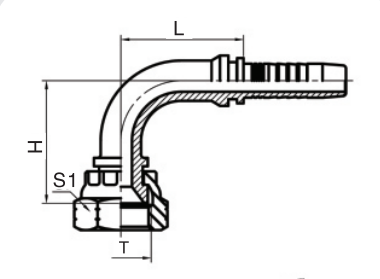

| 代号 | 螺纹 T | 软管 HOSE BORE | 尺寸DIMENSIONS | ||||
|---|---|---|---|---|---|---|---|
| PART NO. | THREAD T | 公称内径 DN | 标号 DASH | L | H | S1 | S2 |
| 26791K-04-04RW | 7/16"X20 | 6 | 04 | 17.5 | 18 | 11 | 14 |
| 26791K-05-05RW | 1/2"X20 | 8 | 05 | 19.5 | 18 | 11 | 17 |
| 26791K-06-04RW | 9/16"X18 | 6 | 04 | 19 | 21 | 14 | 19 |
| 26791K-06-06RW | 9/16"X18 | 10 | 06 | 20 | 21 | 16 | 19 |
| 26791K-08-06RW | 3/4"X16 | 10 | 06 | 23 | 25 | 19 | 24 |
| 26791K-08-08RW | 3/4"X16 | 13 | 08 | 23.5 | 25 | 22 | 24 |
| 26791K-10-08RW | 7/8"X14 | 13 | 08 | 23.5 | 27.5 | 22 | 27 |
| 26791K-10-10RW | 7/8"X14 | 16 | 10 | 25 | 27.5 | 22 | 27 |
| 26791K-12-12RW | 1.1/16"X12 | 19 | 12 | 27.5 | 30 | 27 | 32 |
| 26791K-16-16RW | 1.5/16"X12 | 25 | 16 | 43 | 34.3 | 33 | 41 |
| 注：1.表中代号用于编织软管。 2.如需用于缠绕软管代号改为 26792K-XX-XXRW. | |||||||
