| 代号 | 法兰型号 |

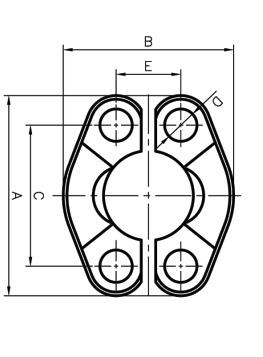

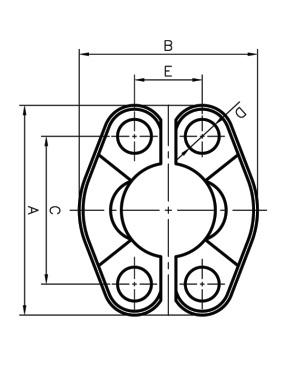

尺寸DIMENSIONS |
可配螺栓 | 压力等级 |
|---|
| PART NO. |
FLANGE SIZE |
A |
B |
C |
E |
|
BOLT |
Mpa |
| FS-08W | 1/2" |
56.4 |
47.2 |
40.5 |
18.2 |
M8×30 |
42 |
| FS-08WUN | 1/2" |
56.4 |
47.2 |
40.5 |
18.2 |
5/16"-18×1.1/2" |
| FS-12W | 3/4" |
71.4 |
60 |
50.8 |
23.8 |
M10×35 |
| FS-12WUN | 3/4" |
71.4 |
60 |
50.8 |
23.8 |
3/8"-16×1.1/2" |
| FS-16W | 1" |
81.2 |
69.6 |
57.2 |
27.8 |
M12×45 |
| FS-16WUN |
1" |
81.2 |
69.6 |
57.2 |
27.8 |
7/16"-14×1.3/4" |
| FS-20W |
1.1/4" |
95.2 |
77.2 |
66.7 |
31.8 |
M14×45 |
| FS-20WUN |
1.1/4" |
95.2 |
77.2 |
66.7 |
31.8 |
1/2"-13×1.3/4" |
| FS-24W |
1.1/2" |
112.8 |
954 |
79.4 |
36.6 |
M16×55 |
| FS-24WUN |
1.1/2" |
112.8 |
95 |
79.4 |
36.6 |
5/8"-11×2.1/4" |
| FS-32W |
2" |
133.4 |
113.8 |
96.8 |
44.4 |
M20×70 |
| FS-32WUN |
2" |
133.4 |
113.8 |
96.8 |
44.4 |
3/4"-10×2.3/4" |
| 注：螺栓需另订。 |
