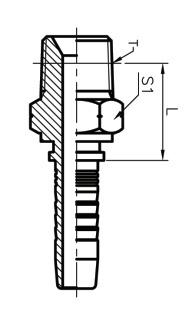

| 代号 | 螺纹T | 软管 HOSE BORE | 尺寸DIMENSIONS | |||
|---|---|---|---|---|---|---|
| PART NO. | THREAD T | 公称内径 DN | 标号 DASH | L | S1 | |
| 13011-02-04SP RW | R1/8"X28 | 6 | 04 | 22.5 | 12 | |
| 13011-04-04SP RW | R1/4"X19 | 6 | 04 | 27 | 17 | |
| 13011-04-05SP RW | R1/4"X19 | 8 | 05 | 27 | 17 | |
| 13011-04-06SP RW | R1/4"X19 | 10 | 06 | 27 | 17 | |
| 13011-06-04SP RW | R3/8"X19 | 6 | 04 | 29.5 | 17 | |
| 13011-06-05SP RW | R3/8"X19 | 8 | 05 | 36.5 | 17 | |
| 13011-06-06SP RW | R3/8"X19 | 10 | 06 | 36.5 | 17 | |
| 13011-06-08SP RW | R3/8"X19 | 13 | 08 | 36.5 | 19 | |
| 13011-08-06SP RW | R1/2"X14 | 10 | 06 | 36.5 | 22 | |
| 13011-08-08SP RW | R1/2"X14 | 13 | 08 | 36.5 | 22 | |
| 13011-08-10SP RW | R1/2"X14 | 16 | 10 | 36.5 | 22 | |
| 13011-08-12SP RW | R1/2"X14 | 19 | 12 | 36.5 | 27 | |
| 13011-12-08SP RW | R3/4"X14 | 13 | 08 | 38.8 | 27 | |
| 13011-12-10SP RW | R3/4"X14 | 16 | 10 | 38.8 | 27 | |
| 13011-12-12SP RW | R3/4"X14 | 19 | 12 | 38.8 | 27 | |
| 13011-12-16SP RW | R3/4"X14 | 25 | 16 | 38.8 | 32 | |
| 13011-16-12SP RW | R1"X11 | 19 | 12 | 46.6 | 36 | |
| 13011-16-16SP RW | R1"X11 | 25 | 16 | 46.6 | 36 |
|
| 13011-20-20SP RW | R1.1"/4X11 | 32 | 20 | 51 | 46 | |
| 13011-24-24SP RW | R1.1"/2X11 | 38 | 24 | 51.5 | 50 | |
| 13011-32-24SP RW | R2"X11 | 38 | 24 | 51.5 | 65 | |
| 13011-32-32SP RW | R2"X11 | 51 | 32 | 51.5 | 65 | |
| 注：1.表中代号用于编织软管。 2.如需用于缠绕软管代号改为 13012-XX-XXSPRW | ||||||
